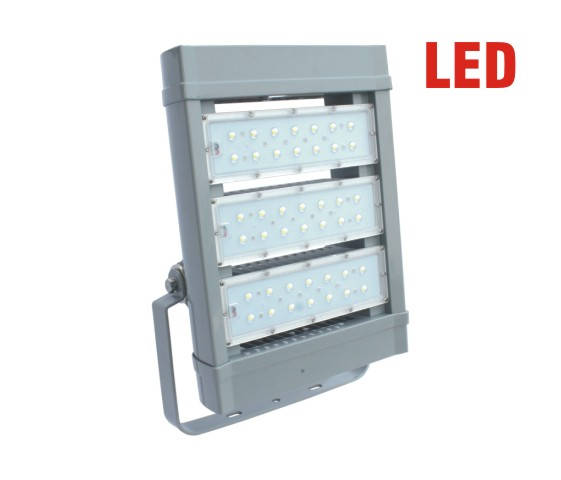

LED Floodlight
ZY8102F Series
  • IP Code: IP66
  • Ambient temp.: -40℃ to +50℃

Application

  • It is an idea lighting solution for the factory, station, tunnel, control room, transformer room etc.

  • Out of consideration of the difficulty of road lighting replacement, the company developed a unique cooling system modules, an effective solution to the problem of LED light failure caused due to high temperature to ensure high efficiency light source with 100,000 hours of life.
  • The even light distribution can avoid the shadow area between the two streetlights. It is glare free. And has a pure white light.
  • It adopts American CREE LED as light source, can save 60% or more on energy than the metal halide lamp.
  • Equipped world top ranking brand, Taiwan Meanwell electrical appliance with power factor 0.98, make the lamp's performance more stable and efficient.
  • Specially designed light lid, easy maintenance.
  • The shell adopts high-tech surface spraying technology, abrasion resistance and resistance to corrosion, waterproof, dustproof, applicable to all kinds of environments.
  • Mounting: bracket.
MAIN SPECIFICATION
Input Voltage 90-305VAC
Frequency 50Hz / 60Hz
Ingress Protection IP66
Anti corrosion grade WF2
Insulation Grade I
Leading-in cable diameter Φ6mm -Φ8mm
ORDERING REFERENCE
Ordering Reference Light Source Rated Wattage Light Output Dimension Net Weight Average Service Life
ZY8102F-L60




LED		 60 8194 322(L)×363×150 5.2




10,000
ZY8102F-L80 80 9737 322(L)×363×150 5.2
ZY8102F-L100 100 10785 322(L)×363×150 5.2
ZY8102F-L120 120 14605 417(L)×363×150 6.2
ZY8102F-L150 150 16178 417(L)×363×150 6.2
ZY8102F-L180 180 20193 512(L)×363×150 7.2
ZY8102F-L200 200 21571 512(L)×363×150 7.2
ZY8102F-L300 300 32356 702(L)×363×150 9.2
ZY8102F-L400 400 43142 892(L)×363×150 11.2
